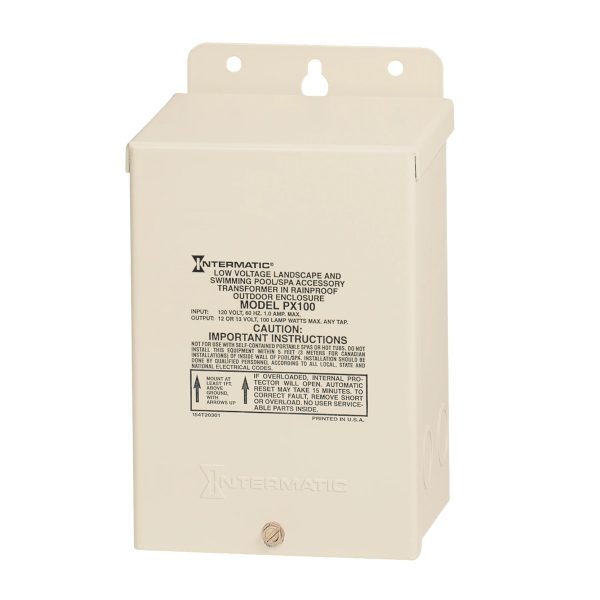

This is the transformer I use with the Pentair MicroBrite lights I install. It takes 120 volts in and puts out 12 volts for the lights, in a rainproof steel box that mounts on a wall or post near the equipment pad. One PX100 runs up to four MicroBrite lights.
What is in the box
- Intermatic PX100 100 W low voltage transformer, 120 V in, 12 or 13 V out, rainproof steel enclosure
Use it with
The MicroBrite color LED light with wall fitting, 50 ft cord or the 100 ft cord version. If you are putting in your first light, the MicroBrite light kit already includes this transformer.
Specs
| Model | Intermatic PX100 |
| Input | 120 V, 60 Hz, 1.0 A |
| Output | 12 or 13 V tap, 100 lamp watts max |
| Lights | Runs up to four 12 W MicroBrite lights |
| Enclosure | Rainproof steel outdoor box, 7.25 x 5.25 x 4.5 in |
| Weight | 6.5 lb |
| Knockouts | 10 combination 1/2 in and 3/4 in |
| Protection | Internal overload protector with automatic reset |
Install notes
Mount it at least 1 foot above the ground with the arrows up, and no closer than 5 feet to the inside wall of the pool. Not for self-contained portable spas or hot tubs.
The only other things you will need are an electrician for the 120 volt side and some 1 inch electrical conduit for the cord run, available at any hardware store.
Shipping
- One box, 14 x 14 x 4 in, 8 lb
Questions: email mike@mgkpools.com or call (978) 710-8667.
